40480 – Magnetic Base Manifold Super Kit


Our Magnetic Manifold Kits have five 1/4” NPT ports.
We offer three kits with an ever increasing amount of hose, nozzles and fittings. pn: 40400,40463,40480
Simply select your preferred kit, attach your supply hose to one of the ports or use the included hose barb.
Plug any of the unused ports with the included plugs.

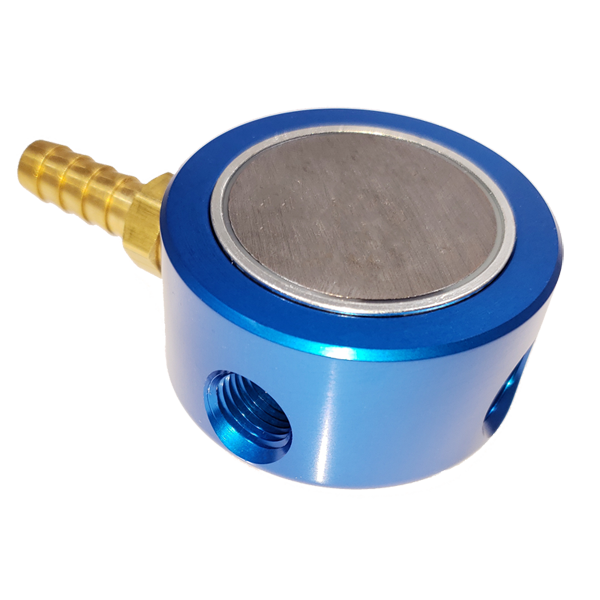

Assemble your preferred hose and attach to any magnetic surface with the permanent magnet in the base of the manifold!

25lb Pull Magnet

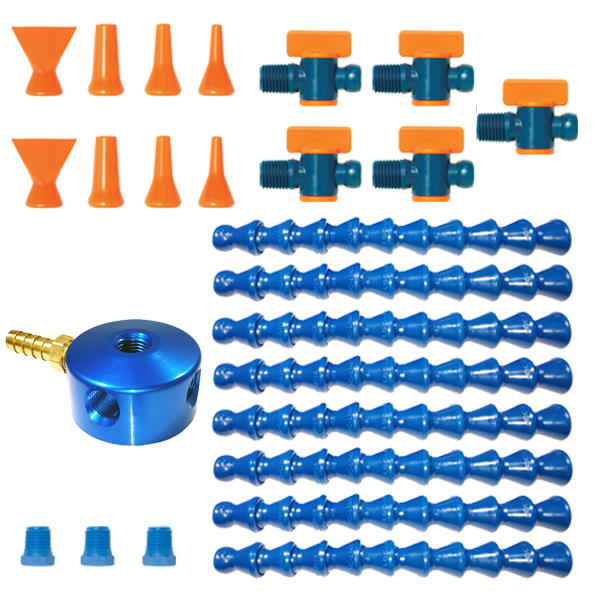

40480 – Magnetic Manifold Super Kit


(8) 5-3/4″ Long Segments
(5) 1/4″ MNPT Valves
(2) 1″ Flare Nozzles
(2) 1/4″ Round Nozzles
(2) 1/8 Round Nozzles
(2) 1/16″ Round Nozzles
(1) Mag. Base Manifold (25lb Pull)
(3) 1/4″ Plugs
(1) 1/4″ Barb Fitting

Material: Properties

CAD: Parasolid Format

CAD: Step Format
