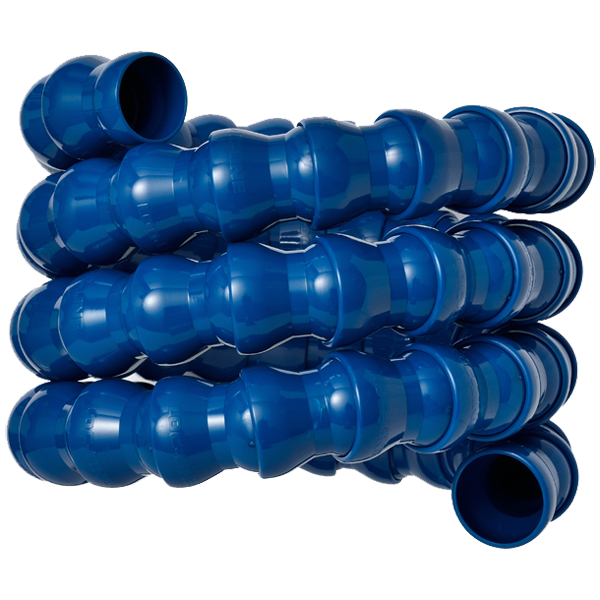

69539 – 3/4″ – 5 Foot Coil

69539 – 3/4″ – 5 Foot Coil

Materials and Properties:

Material: Acetal Copolymer

Colors: Blue, Black, Grey

Compatibility:

Yes: Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish Detergents, Gasoline, Lacquer Solvents, Sodium Hydroxide

No: Chlorine, Acids, Ammonium Hydroxide, Bases Strong, Hypochlorite Ion Solutions, Sodium Hypochlorite

Melting Point: 329F

Maximum Operating Temperature: 170F (Repeated exposure to this temperature will cause fatigue)

Recommended Maximum Line Pressure & Flow Rates:

20 PSI 1,140 gph

40 PSI 2,280 gph (With Element Clamps)

Information regarding FDA (Federal Food and Drug Administration).

Loc-Line is made of an Acetal copolymer.  This material in accordance with the rules in 21CFR 177.2470 meets the requirements of this regulation for food contact. All colorants are used at the recommended let-down ratio to meet 21CRF 178.3297. Loc-Line is not sanctioned for use with alcoholic or fatty foods at any temperature. The material also meets NSF International Standards 14, 51 and 61 for contact with potable water

Please note that all applications have variables and conditions that will affect the maximum working pressures. Testing suitability for your application is always recommended.

Lockwood Products Inc. does not warrant any particular application for it’s products.
