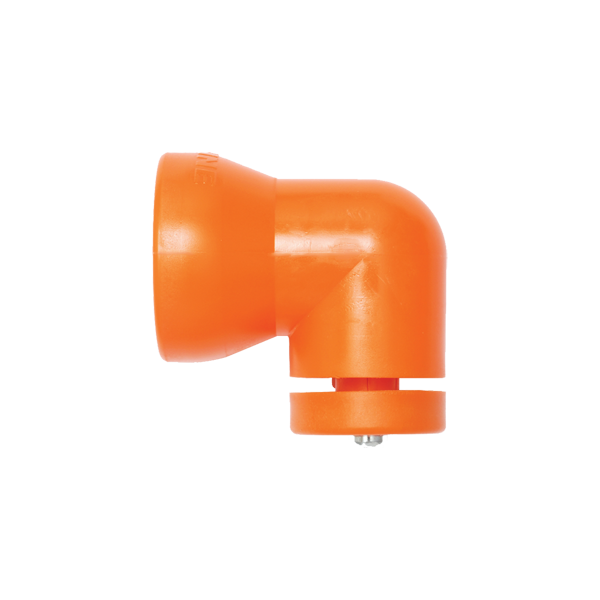

60531 – Shield Mounting Elbow W/Washer&Screw – Pack of 2
CAD: Parasolid Format
CAD: Step Format
Our Shield Mounting Elbows are used in our shield kits to attach the shield to the 3/4” hose.
These Shield Mounting Elbows can be used to attach 3/4” Loc-Line to any 1/8” thick material with a 1/4” hole.
By placing the elbow on one side and the washer on the other side of the material, the included Allen head screw provides clamping force to attach the mounting elbow.
Standard 3/4” Loc-Line hose can be attached to the socket end of the mounting elbow.
